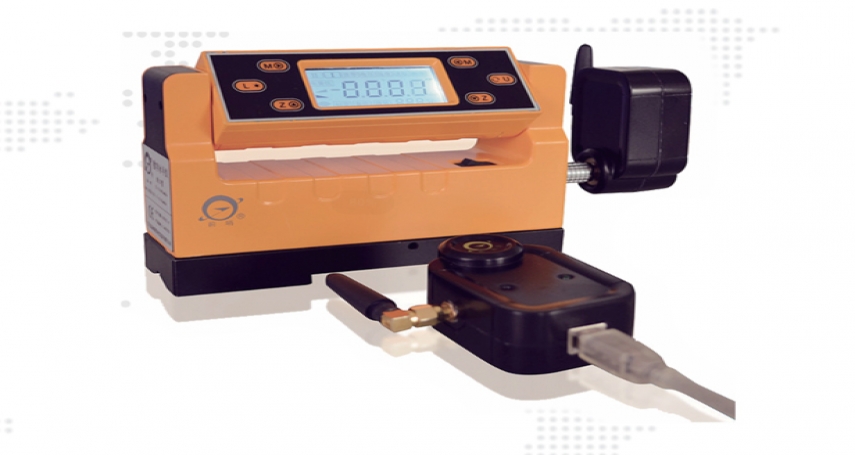

Digital electronic level

This series of products are widely used in the measurement of straightness, flatness and parallelism as well as the level detection and adjustment of working surfaces of precision machine tools, machining centers and three-coordinate measuring machines. The Bluetooth module is included to realize the wireless transmission of measurement data.

 Product Features:

○ High measurement accuracy, fast and intuitive readings.

○ Compact design, easy to operate, unique rotating handle to meet the needs of your various perspectives

○ Two data transmission methods, standard RS232 serial port and Bluetooth, are available.
○ With measurement data storage, reading and deletion functions, up to 500 data can be stored.

○ Precise adjustment and zeroing by key at any position (absolute and relative zero)

○ Two measurement units mm/m and angle (seconds) are available.

○ With automatic temperature detection function.
○ With automatic power supply voltage detection, low battery alarm function
○ Universal 1.5v AA battery power.
○ Touch control panel, easy to operate.

Appearance size：

* Base working surface size: 150mmx47mmx20mm

* External dimensions:150mmx47mmx106mm

* Package Size: 355mmx240mmx105mm
* Net weight: 1.3kg
* Gross weight:3.0kg

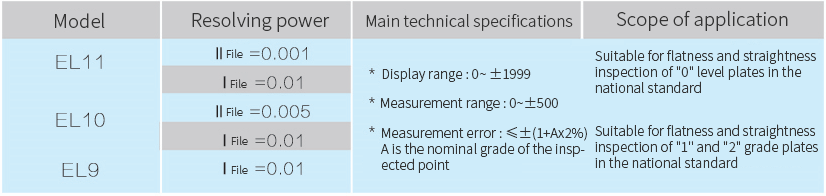

Technical parameters：

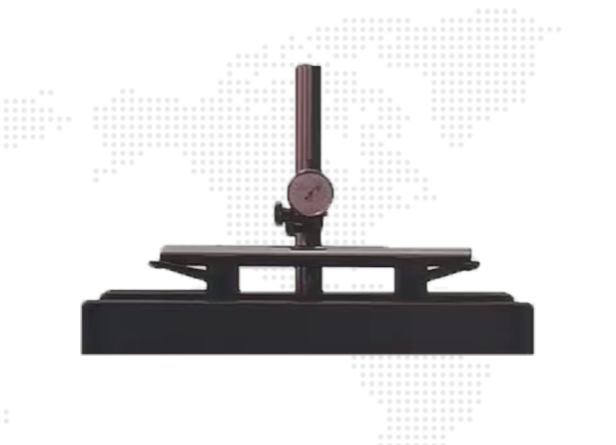

Jumpers

Product Features：

○ Fast and accurate detection of radial runout and roundness

○ V-frame position can be easily and quickly adjusted to meet different lengths of workpieces

○ V-frames can be replaced; individual V-frames can be used as parallel spacers, vertical references

○ Remove the V-frame, the base can be used as a measuring base and the measuring block can be used as a length gauge; slender workpieces can be tested for parallelism and straightness with the help of high precision groove bottom

○ Measuring gauge holder with fine adjustment

Appearance size：

* Base specifications：500*200*60

* V-frame specifications：63*63*35

* V-side specifications：40x90

* Measurement Range：φ100x500

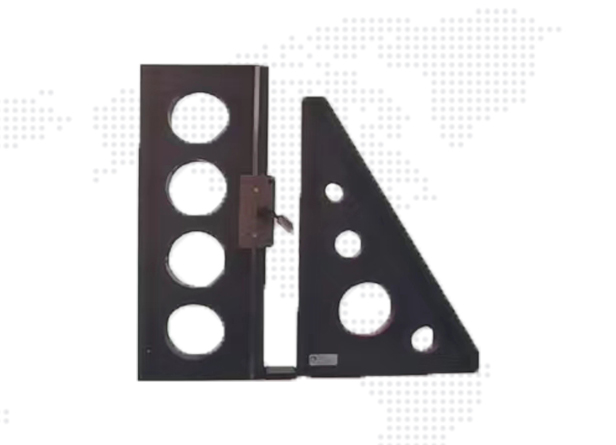

Simple verticality measuring instrument

 Product Features：

○ One side of the guide rail is used for perpendicularity measurement and the other side is used as a square ruler

○ Low environmental requirements, moderate accuracy

○ Easy processing, easy operation, simple measurement

○ No gas, no electricity

○ Easy to transport

○ Ideal for factory applications

Technical parameters：

* Guide rail size：700*270*80

* Measurement Range：0-500mm

* Straightness of guide rails：2μm

* Granite base verticality：3μm

* Instrument measurement accuracy：±3μm

* Weight：35kg

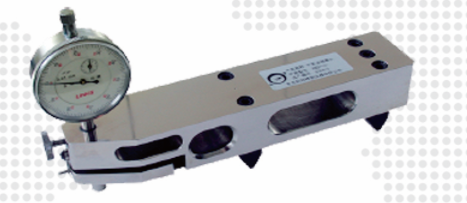

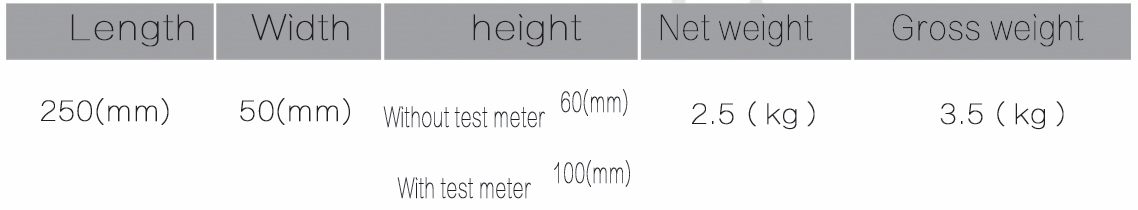

Plane Fluctuation Gauge

Plane fluctuation gauge is an efficient and convenient inspection tool for testing local flatness, and the product can be equipped with different precision inspection instruments (such as: micrometer, inductive micrometer) to meet the requirements of different measurement precision.
